Cal Pump Mag Drive Waterfall Pumps
Cal Pump magnetically waterfall pumps are durable, reliable and energy efficient. Uses up to 40-60% less electricity than direct drive pumps. To install inline remove the bottom screen. The Cal Pump submersible pump is great for waterfalls, streams, bio filters and more. 1 1/2" up to 2" MPNT adapter included on PWM2600 through PWM5200.
Features & Benefits:
- One year warranty
- Uses up to 40-60% less electricity than direct drive pumps
- No seals, no oil
- 1-1/2" FNPT discharge
- 1-1/2" MNPT suction
- 20' power cord
- Can be installed in line
- UL listed for consumer confidence
- Approximate Dimensions: 10-1/2" x 7-1/2" x 6" for the PWM2600 and PWM3900
- Approximate Dimensions: 11-1/2" x 7-1/2" x 6" for the PWM5200
Pump Applications:
- Waterfalls and streams
- Ponds and water gardens
- Fountains and water displays
- Biofilters and UV filters
- Koi ponds
Optional:

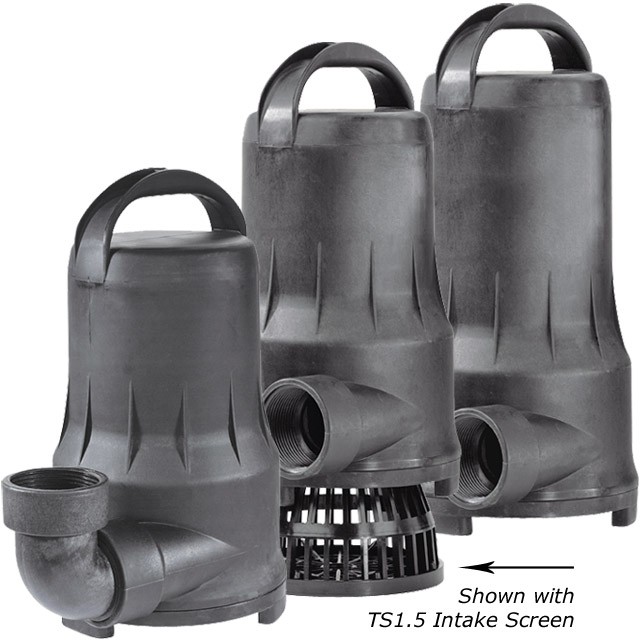

TS1.5 - 1-1/2" Intake Screen is NOT Included
H I G H V O L U M E W A T E R F A L L P U M P S |
|||||||||
---|---|---|---|---|---|---|---|---|---|
Model | AMPS (MIN/MAX) | WATTS (MIN/MAX) | MAX FLOW | MAX HT. | 1' | 5' | 10' | 15' | |
PWM2600 |
1.8 |
155 |
2640 |
10’ |
2550 |
1530 |
- |
- |
|
PWM3900 |
2.4 |
280 |
3300 |
13’ |
3300 |
2460 |
1500 |
- |
|
PWM5200 |
5 |
410 |
4080 |
20’ |
4080 |
3480 |
2520 |
1115 |
